Dillon Precision just launched their bullet feeder! We’re ready to put it to work, and we’ve got some awesome content on the way. In this video, we’ll go over what’s included, install it on the XL750, and walk through the setup. Once we’re running we’ll load some 9mm and perform a caliber change to load some .45. Check it out and don’t forget to use code URMAY for free shipping from Dillon Precision for May 2025!
Disclaimer
Ultimate Reloader LLC / Making with Metal Disclaimer: (by reading this article and/or watching video content you accept these terms). The content on this website (including videos, articles, ammunition reloading data, technical articles, gunsmithing and other information) is for demonstration purposes only. Do not attempt any of the processes or procedures shown or described on this website. All gunsmithing procedures should be carried out by a qualified and licensed gunsmith at their own risk. Do not attempt to repair or modify any firearms based on information on this website. Ultimate Reloader, LLC and Making With Metal can not be held liable for property or personal damage due to viewers/readers of this website performing activities, procedures, techniques, or practices described in whole or part on this website. By accepting these terms, you agree that you alone are solely responsible for your own safety and property as it pertains to activities, procedures, techniques, or practices described in whole or part on this website.

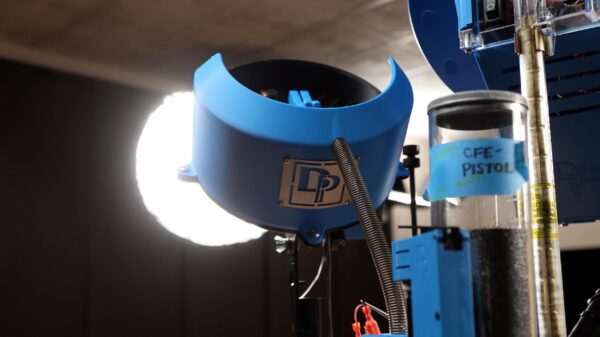

About the Dillon Bullet Feeder
I’ve been patiently awaiting Dillon’s new bullet feeder since it was announced at the 2025 SHOT Show. It features tool-less adjustments and feeds up to 4,000 rounds per hour.
It is compatible with the Dillon XL750, XL650, RL1100, and Super 1050 and available for the following calibers: 9mm/.355/.357, .223/5.56, .308/7.62, 10mm/.40, and .45.
We are also giving away a complete Dillon Precision bullet feeder kit to one of our Ultimate Reloader newsletter subscribers. Sign up below!
From Dillon:
The Dillon Precision Bullet Feeder is the newest addition to our collection of premium reloading accessories. It features the same quality and attention to detail you’ve come to expect from Dillon Precision and it has several key advantages including:
-
- Unmatched reliability. With tens of thousands of rounds tested, we have experienced ZERO misfed projectiles.
- Optimized compatibility with longer rifle projectiles which are typically more cumbersome to feed. Utilizing an innovative adjustment system, the Bullet Feeder allows every user to customize it to match a specific bullet type, without the need for “fine tuning”.
- Dillon’s modern manufacturing process results in low-cost conversion kits to swap between calibers, while allowing for fast and efficient improvements throughout the development process. It also allows us to pass on the lower cost to our customers.

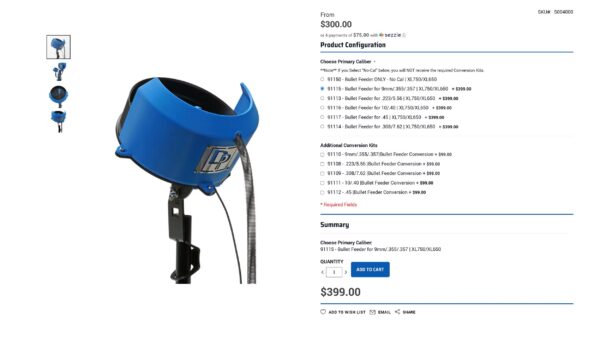

Dillon’s Precision Bullet Feeder comes with mounting posts for XL750/XL650, and at our introductory price of $399, it’s much more affordable than its primary competitors.
-
- TOOL-LESS ADJUSTMENTS
- FEEDS UP TO 4,000 ROUNDS PER HOUR
- HOLDS UP TO 400+ ROUNDS OF 9MM
- STAINLESS STEEL DROPPER DIE
- 1 YEAR WARRANTY ON MOTOR
- LIFETIME WARRANTY ON PARTS
- DESIGNED FOR XL750 / XL650 / RL1100 / Super 1050
- UNIVERSAL MOUNT SOLD SEPARATELY

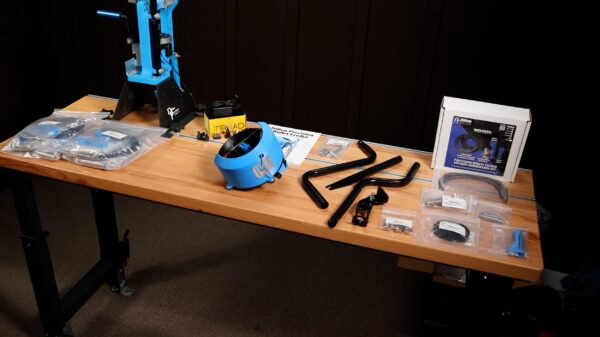

What’s in the Box
Securely packed in traditional Dillon fashion, all of the components arrived without damage.

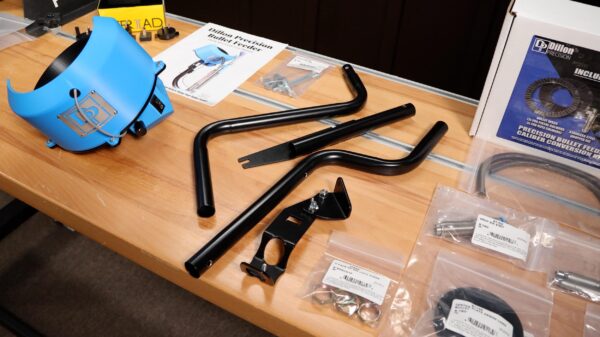

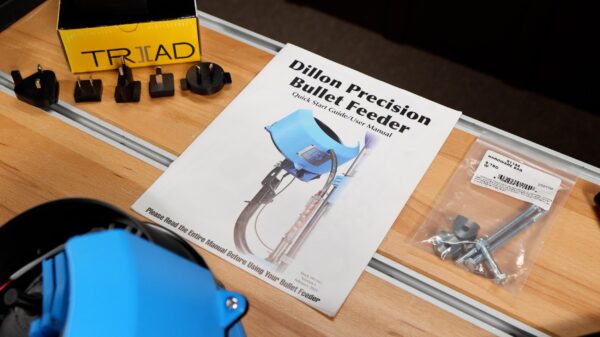

The base bullet feeder arrives with a single caliber conversion (with feed ring pre-installed), power supply with multiple international adapters (120/240), lock rings, extra hardware, instructions, and mounting hardware.

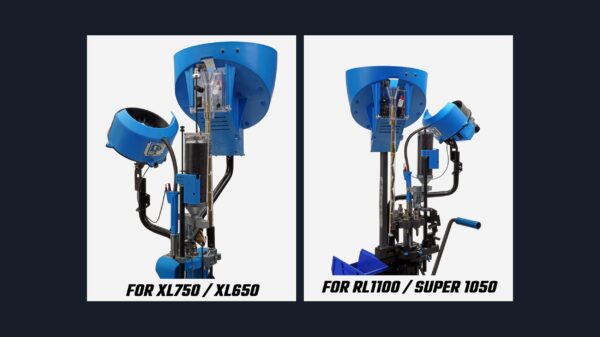

It’s important to note that the bullet feeder only comes with the post for the specific machine you choose, XL750/XL650 or RL1100/Super1050.

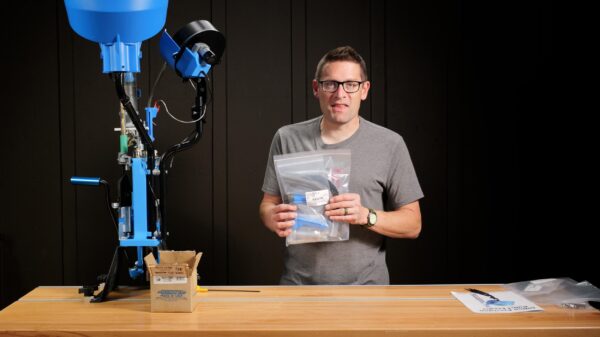

While one caliber of choice is included with the bullet feeder, there are additional caliber conversion kits available.

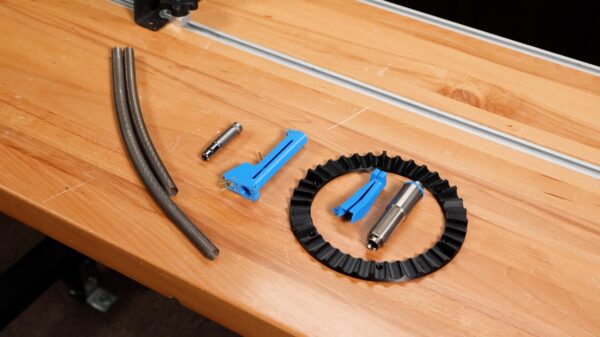

Each caliber conversion kit includes a caliber-specific bullet ring, bullet dropper die, chute, switch, optimized powder funnel, and two different-length bullet conduit springs.
Set-Up and Loading

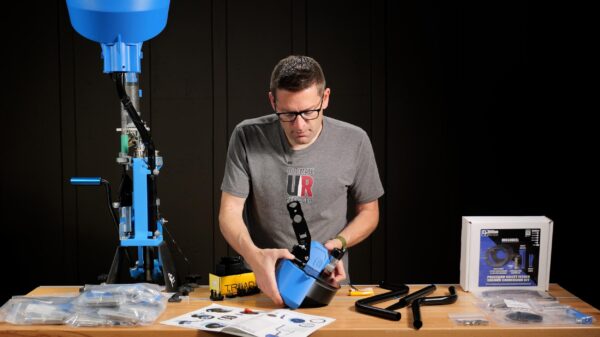

Each bullet feeder arrives with a caliber conversion of choice pre-installed, so the first step is to install the mounting bracket to the bullet feeder.
This is accomplished using two screws which are pre-installed in the steel base. I consulted the written instructions to ensure the correct orientation and numbered position. There are three different positions marked by cut outs on the bracket— Dillon recommends starting with number two, the middle position.
**If I were to assemble the feeder from scratch, I would have to mount the bullet disc to the bowl and the bowl to the feeder in addition to the bullet chute.

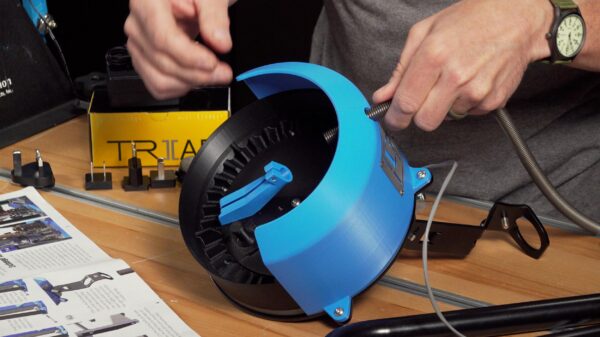

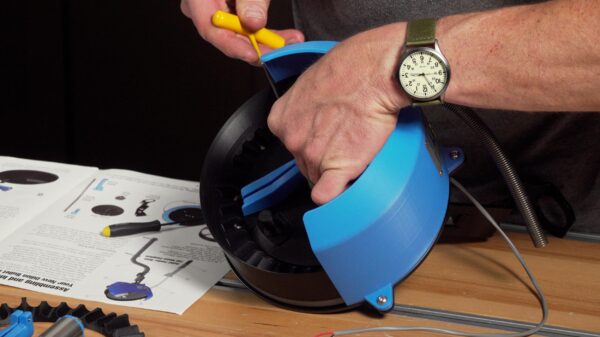

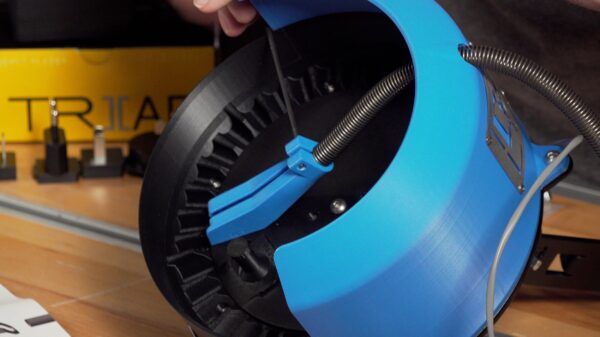

After installing the mounting bracket, the next step is to feed the bullet conduit spring through the front of the bowl, relax the clamp on the chute, and twist the spring in a clockwise direction to feed it into the opening.
When this is complete, retighten the clamp.

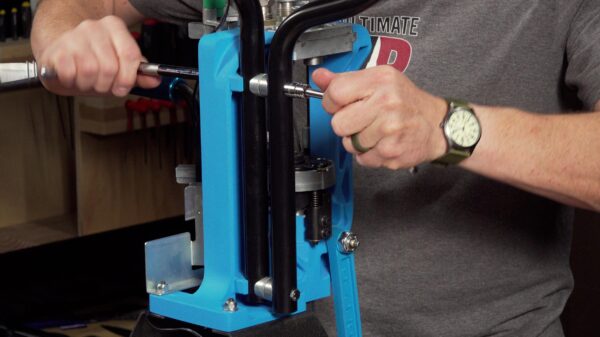

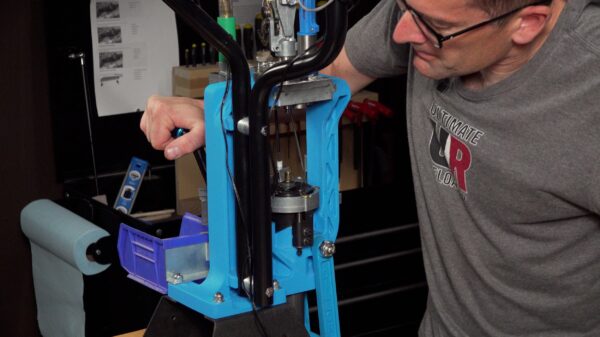

With the bullet feeder assembly together, I needed to swap the pole mounting hardware on my XL750 out for some longer bolts and add tube adapters.

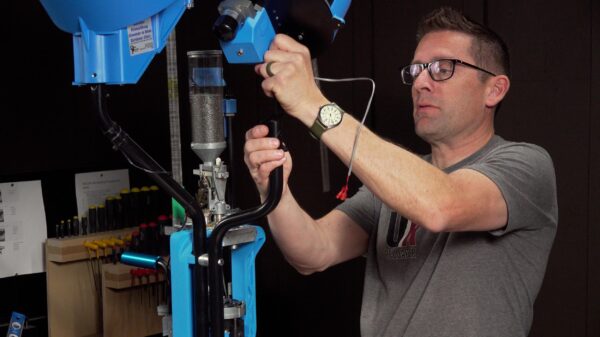

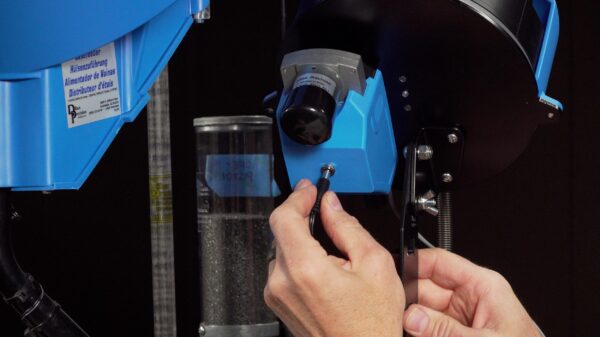

This allows use of both a Dillon casefeeder and bullet feeder. The bullet feeder bracket slides right over top of the pole and is secured with a screw that controls angle and height.
Next comes connecting the bullet conduit spring to the lower block and adding power.

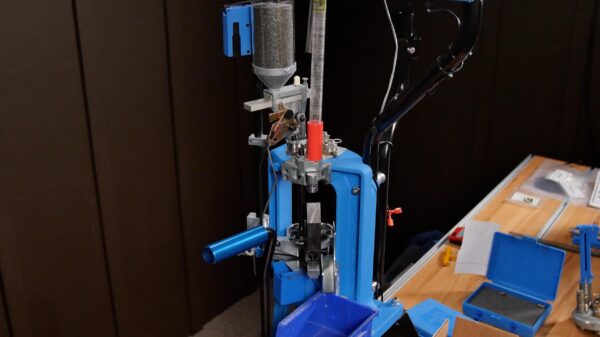

At this point it’s time to remove the powder measure and swap out the funnel I normally use for 9mm with a special one for the bullet feeder.

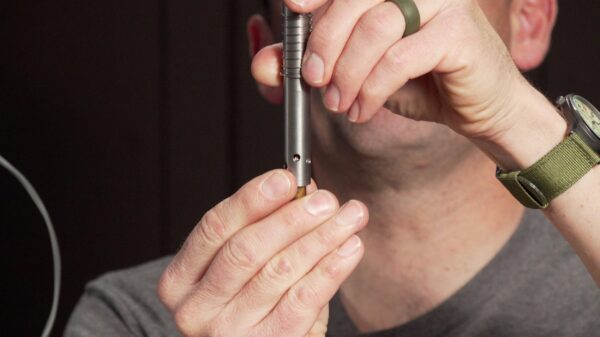

When I completed this task, I installed the bullet dropper die. The first step was to remove the sleeve and place it over a sized and flared case. (This case was flared with the powder funnel expander that came with the caliber conversion kit. This is important as the new expander has a slightly different profile optimized for bullets.)
At this point, the die is only on the bench, not installed on the press. Drop the bullet you will be loading into the top of the sleeve.

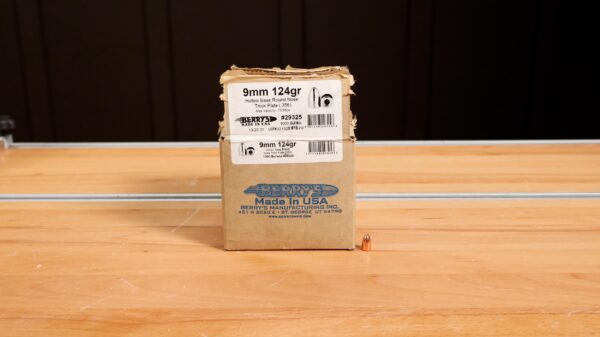

For this session, I’m loading Berry’s 9mm 124 grain HBRN-TP bullets.

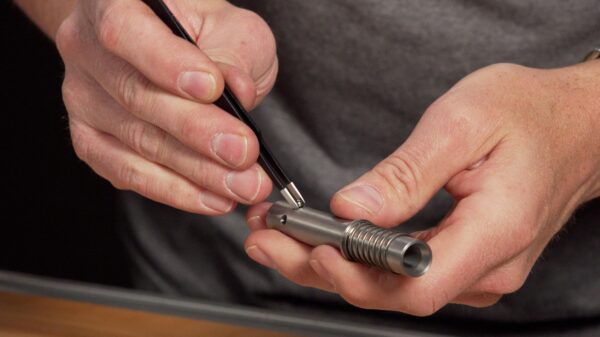

The goal is to be near the tip of the bullet but not beyond it. Look through the holes on the sleeve and add the included ball bearings to the uppermost spots.
Slide the sleeve back into the die and add the top lock ring. I adjusted my die setup on the Dillon XL750 to accommodate the bullet dropper die, moving the seating and crimping dies from stations three and four to four and five. This opened up station three for the bullet dropper die.

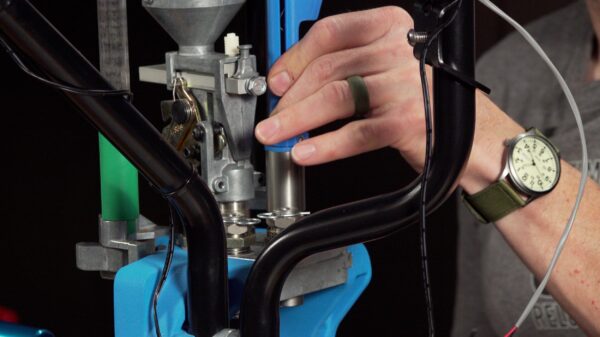

I screwed the die into the press just enough for it to stay, raised the ram, and dropped a few bullets into the die, base down. With the bullets inside, I screwed the die down until I heard the bullet drop, took it another half turn, and locked down the lock ring for the bullet dropper die.

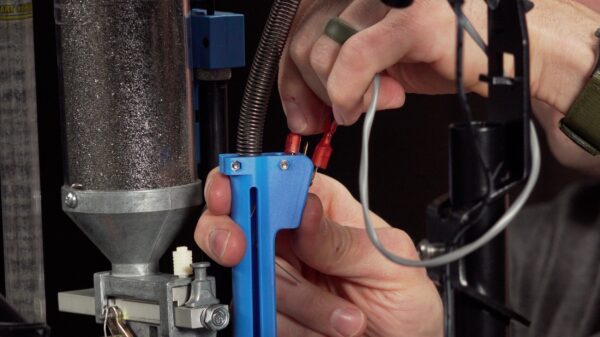

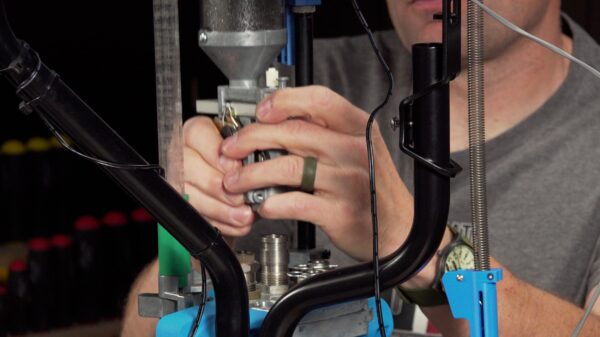

The final step before loading was to attach the bullet feeder switch and connect the wires.

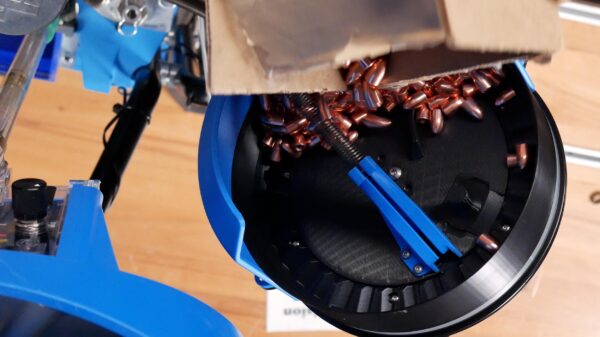

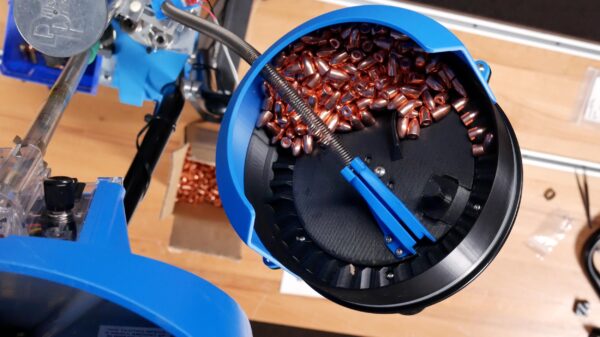

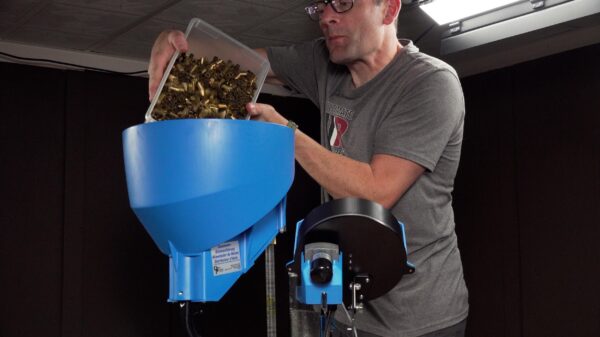

I filled the casefeeder hopper with 9mm cases and the bullet feeder bowl with Berry’s 9mm 124 Grain HBRN-TP plated bullets.
I loaded the first few rounds slowly, speeding up as I became more comfortable.
Caliber Conversion: 9mm to .45 ACP
To demonstrate a pistol caliber conversion, I decided to swap 9mm for .45 ACP.
To remove the bullet feeder, first turn the bullet feed switch off and move it up and down to release any bullets remaining in the queue. Next, disconnect the bullet conduit spring and switches, loosen the screw on the bracket, and remove the entire bullet feeder. Be careful not to spill any of the remaining bullets in the bowl. These can simply be dumped back into their original container.
With the empty bullet feeder assembly on the bench, I removed the bullet conduit spring and chute.

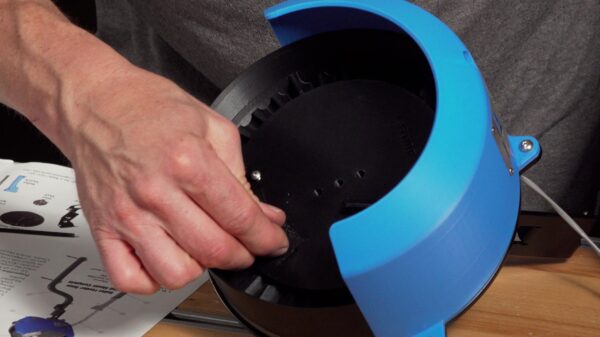

Next, I removed the center hub plate and the entire bowl assembly.
There are six screws along the inside of the bowl assembly that hold the caliber-specific disc to the bowl.

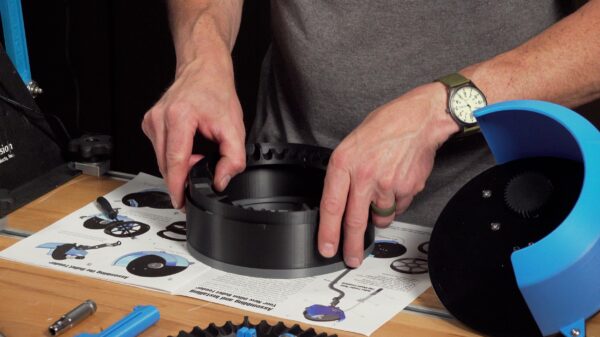

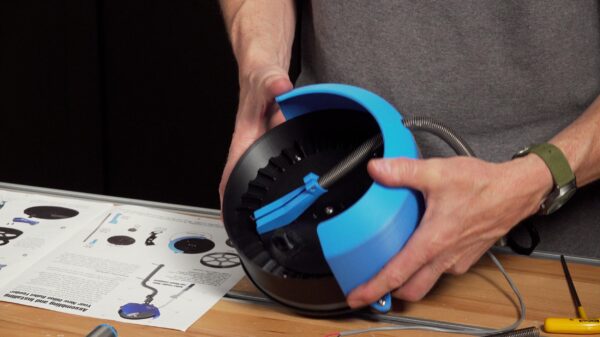

I swapped the 9mm disc for the .45 disc and returned the bowl assembly to its original position.

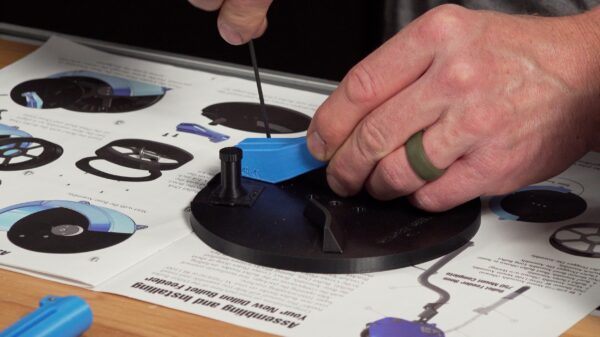

I then installed the appropriate chute on the center hub from the .45 caliber conversion kit, and secured the hub in the bullet feeder.

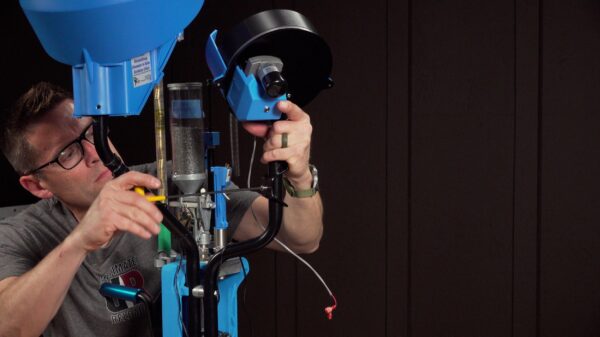

Just as I did earlier when setting up for 9mm, I fed the bullet conduit spring through the bowl and clamped it into the chute before securing the full assembly on the press.

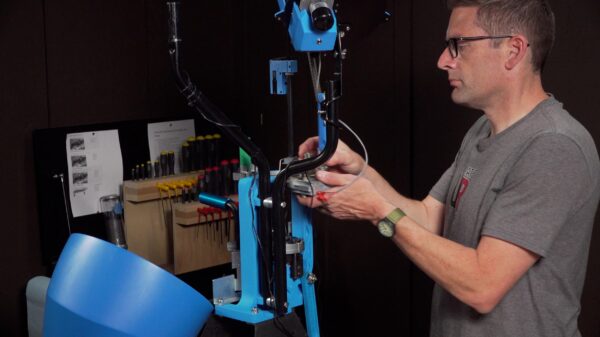

Before installing the bullet feeder switch and powder funnel, I needed to swap out the rest of the 9mm equipment on the XL750 for .45 ACP. I replaced the toolhead, adjusted the dies, and swapped out the case feed plate.
I didn’t have to change the powder measure, only the funnel as I was using the same powder, CFE Pistol.
With all of this in place, it was time to set up the bullet dropper die.

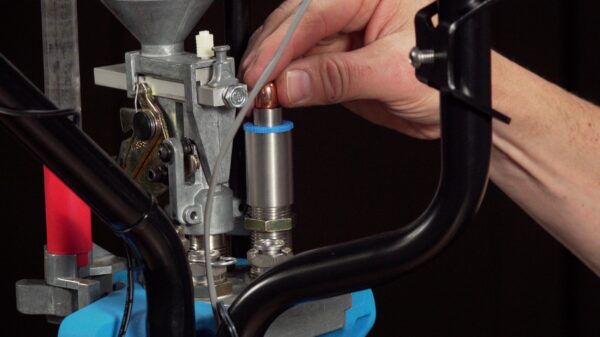

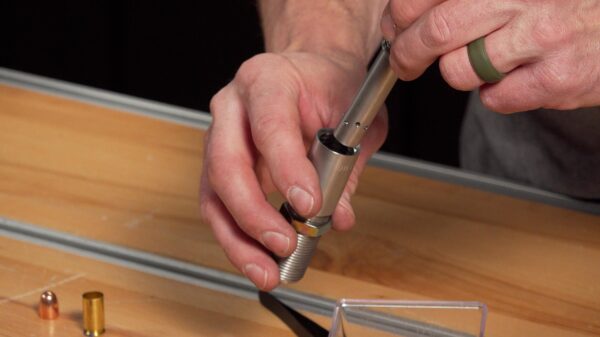

I followed the same procedure as I did with the 9mm die, setting the ball bearings to the appropriate height, this time for a Berry’s .45 ACP 185 grain bullet, and setting the proper die height.
Now it was finally time to install the bullet switch and connect the wires.

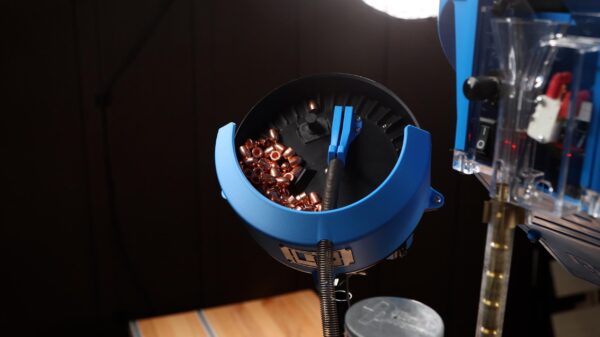

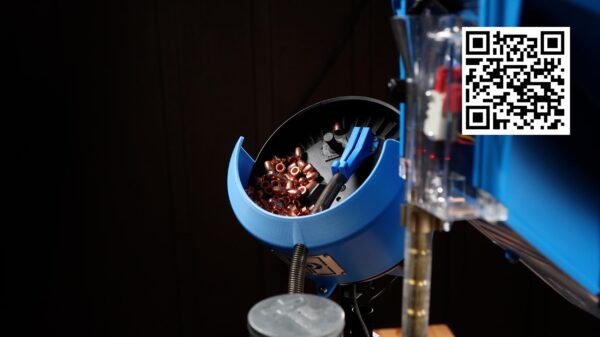

I added cases and bullets, but soon discovered I needed to make an adjustment to the bullet feeder. The bullets that landed nose down in the collator fell back into the bowl as desired, but the bullets that landed base down also fell back instead of going down the tube into the bullet dropper die.
Cranking the knob inside the bowl adjusts the plate up and down – no tools required! I needed to adjust the plate up slightly so that the radius edge of the bullet would ride past it base down. It took just a few seconds to properly adjust the bullet feeder — all is shown in the video!

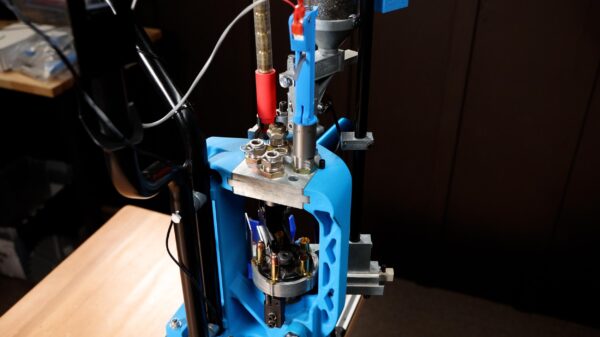

With all in working order, I got to work loading ammunition! Note: the press will run smoother if you use case lube even though it isn’t needed for pistol ammunition with carbide dies.
Conclusion
Dillon’s testament of superior reliability is holding true thus far! I had zero bullets upside down and the press ran smoothly with both 9mm and .45. Making adjustments was extremely quick and easy, as was the initial set-up.
I’m extremely impressed with Dillon’s new bullet feeder and look forward to loading more with it. Stay tuned for a video featuring rifle bullets!
Don’t forget to sign up for our newsletter to be entered in the giveaway and use code URMAY for free shipping on all Dillon Products, including the bullet feeder, throughout May 2025!
