One source of variation in rimfire ammunition is rim thickness. In this video, we’ll show how to measure it using a Hornady Lock-N-Load 17-22 Rim Thickness Gauge.

Disclaimer

Ultimate Reloader LLC / Making with Metal Disclaimer: (by reading this article and/or watching video content you accept these terms). The content on this website (including videos, articles, ammunition reloading data, technical articles, gunsmithing and other information) is for demonstration purposes only. Do not attempt any of the processes or procedures shown or described on this website. All gunsmithing procedures should be carried out by a qualified and licensed gunsmith at their own risk. Do not attempt to repair or modify any firearms based on information on this website. Ultimate Reloader, LLC and Making With Metal can not be held liable for property or personal damage due to viewers/readers of this website performing activities, procedures, techniques, or practices described in whole or part on this website. By accepting these terms, you agree that you alone are solely responsible for your own safety and property as it pertains to activities, procedures, techniques, or practices described in whole or part on this website.

Background

Rimfire isn’t just fun, but presents unique challenges. As with any caliber, I love doing everything possible to shrink my groups and hit crazy targets. In example, hitting a steel target at 511 yards with a .22 LR.

When it comes to rimfire, I generally sight in at 50 yards and progress to 100 then 200 yards. I like to see how the groups vary across distance.

It’s also important to realize that rimfire varies significantly from lot to lot.

Certain lots will perform better in some rifles than in others. This is why locations like the Lapua Test Center exist, to allow shooters to find the best lot for them.

While we’ve long been aware of this at Ultimate Reloader, one thing we haven’t taken a close look at is measuring rim thickness.

About the Hornady Lock-N-Load Rimfire Thickness Gauge

The Hornady Lock-N-Load Rimfire Thickness Gauge is extremely easy to set up.

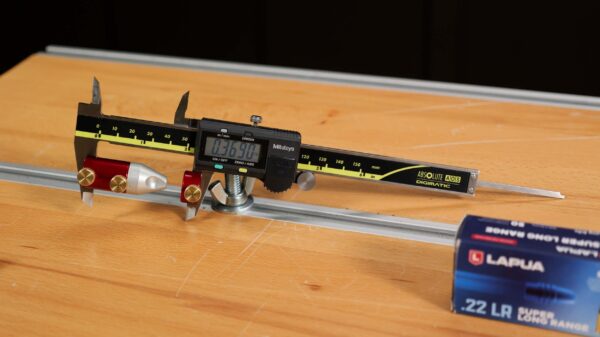

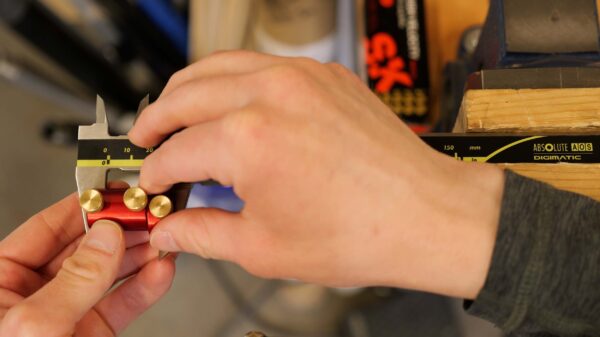

Simply screw both the body and anvil to the calipers. Hornady recommends using the anvil on the traveling blade, but Kyle prefers the opposite.

When the body, anvil, and bushing are secure, make sure there are no gaps and zero out the calipers.

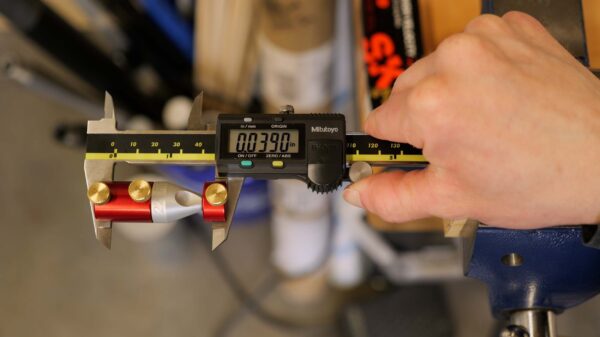

Drop a round into the gauge and record the value!

This tool comes with a lanyard to prevent droppage. We secured it in a vise during use for the same purpose. The reason this matters is that a hard drop while measuring ammunition can set a round off.

From Hornady:

Sorting ammo by rim thickness will provide ammo with similar ignition qualities for improved accuracy.

This proven technique is used by competitive shooters and varmint hunters.

The rimfire gauge attaches to your caliper and includes bushings for use with most (not compatible with 17 WSM) .17 and .22 caliber rimfire ammo.

What’s in the Box

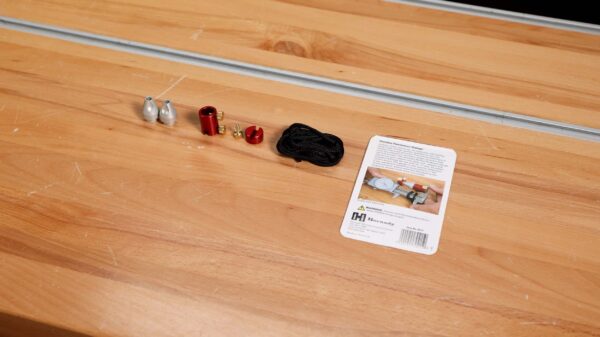

Included in the kit is a lanyard, two bushings (.17HMR and .22 Mag), anvil, body, and some screws. This tool does not come with a set of calipers – install it on your calipers of choice.

Measurements

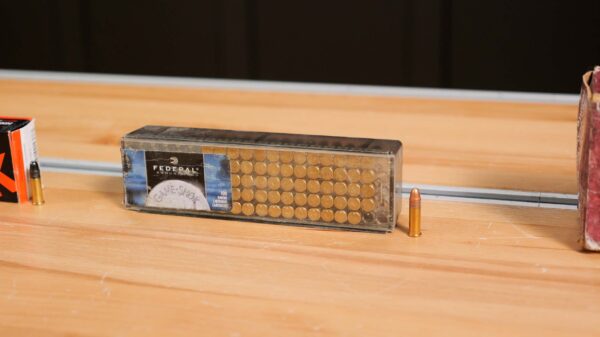

Kyle measured the rim thicknesses of 20 rounds for five types of ammunition: Remington Golden Bullet, Lapua Super Long Range, Lapua Center-X, RWS R50, and Federal Game-Shok.

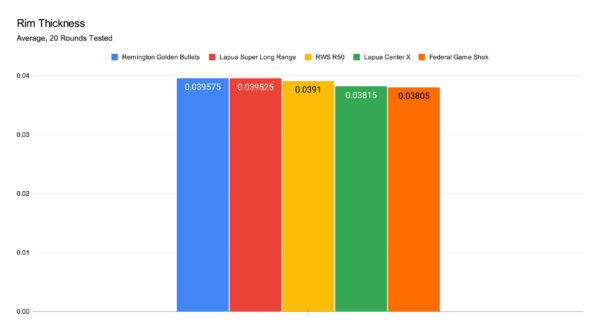

The average rim thickness across all five types of ammunition tested ranged from 0.03805” to 0.039575”.

Remember that human error is still a factor while using calipers. Also take the capabilities of your calipers into account. With such small numbers, we are on the cusp of measurement error.

The standard deviation results surprised us. Federal Game-Shok was the most consistent, followed by Lapua Center-X and RWS R50.

Remington Golden Bullet had the most variation. These are not known for their accuracy, but affordability, so this was not surprising. Kyle’s research indicated that rim thickness itself isn’t as critical as the consistency of it, but the question remains, does it matter?  If you have thoughts on this topic, please drop them in the comments!

Conclusion

I was surprised at how close the rimfire thickness was across all rounds tested, with the exception of Remington Golden Bullet. While we didn’t come to any conclusions on the true effects of rim thickness variation, it’s still an interesting experiment.
