Precision Matthews PM-1340GT: Part 2

Chambering precision rifle barrels is one of my favorite activities, but it takes time to get a new machine set up how I want it. In this video, I go over the additions I’ve made to my PM-1340GT!

Disclaimer

Ultimate Reloader LLC / Making with Metal Disclaimer: (by reading this article and/or watching video content you accept these terms). The content on this website (including videos, articles, ammunition reloading data, technical articles, gunsmithing and other information) is for demonstration purposes only. Do not attempt any of the processes or procedures shown or described on this website. All gunsmithing procedures should be carried out by a qualified and licensed gunsmith at their own risk. Do not attempt to repair or modify any firearms based on information on this website. Ultimate Reloader, LLC and Making With Metal can not be held liable for property or personal damage due to viewers/readers of this website performing activities, procedures, techniques, or practices described in whole or part on this website. By accepting these terms, you agree that you alone are solely responsible for your own safety and property as it pertains to activities, procedures, techniques, or practices described in whole or part on this website.

Precision Matthews Machines

The PM-1340GT isn’t the only gunsmithing lathe at Ultimate Reloader.

I also use the PM-1440GT, PM-1440HVT-2, and TL-1660.

Each machine has different capabilities which make it more or less suited to different tasks.

Modifications

Storage is critical for all lathes. I equipped the PM-1340GT very similarly to how I did the PM-1440GT. On both lathes I have one storage tray on the headstock and another on the splash guard.

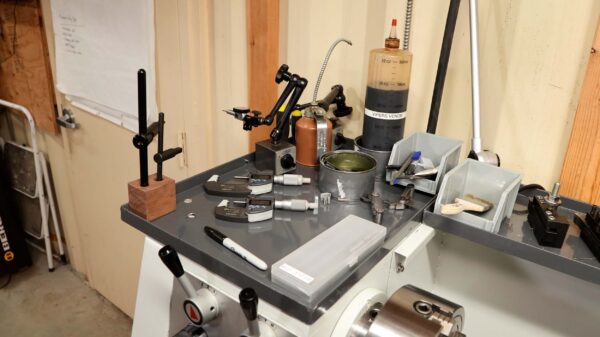

I use the headstock tray for my precision measuring tools, indicators, chuck keys, thread pitch gauges, and other tools I need frequent access to. I’ve even customized my tray to allow it to hold screwdriver-type Allen keys.

The splashguard tray runs the full length to about ¾” beyond the splash guard. I relocated the DRO here as well as tooling and other accessories.

Moving the DRO prevents it from getting splashed with oil in its original location. I also built a custom morse taper #3 tooling rack that I placed above the tailstock. This makes for a convenient workflow.

It’s important to note that the PM-1340GT also comes with built-in storage on both sides of the lathe. I keep the toolbox and chucks there.

Moving on from storage, I made a number of modifications to the headstock. I built a spider featuring a pinch clamp and set screws that clamp the adjustment screws in place.

This eliminates the need for nuts that get in the way while extracting or retracting the spider screw. I also had to bore out the hole that goes around the outboard side of the spindle. I didn’t stop at the headstock, making personal adjustments to the side cover.

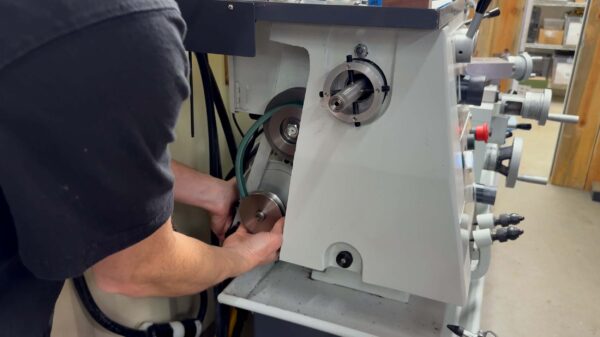

When I get a rifle barrel in the lathe, I do not want to remove it to do a belt change if need be.

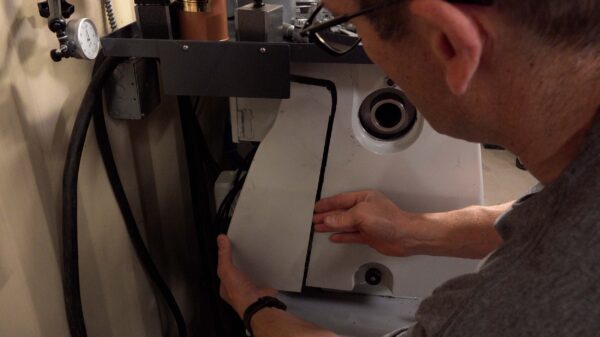

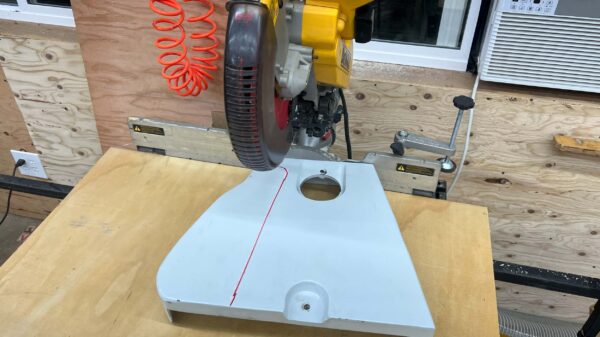

To provide easy access, I used a chop saw to carefully move a section of the cover.

A steel pad on the side of the headstock tray serves as a connection point for indicators to verify barrel quality. I made one change to the carriage, adding a standoff/bump stop.

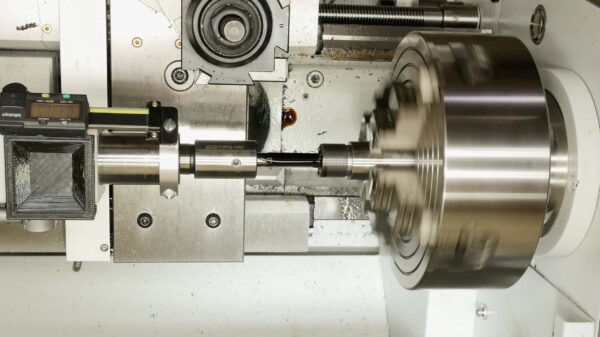

Calipers on the tailstock DRO provide an incremental reading on how deep we are drilling/reaming.

First Chambering Job

Rigid tooling and rigid work are the best combination for good chambering results.

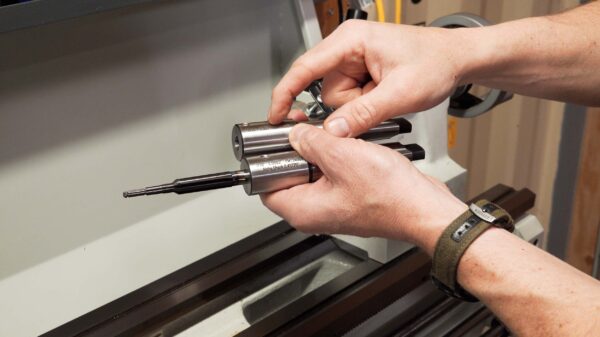

One way I ensure this is by making and using rigid reamer holders. My first chambering job on this lathe was a 6GT out of a steel 416R stainless barrel blank.
