One of the most rewarding parts of Ultimate Reloader is providing product improvement feedback and seeing it put into action. While we loved Built American’s DSBE-1500 Spray Booth, we recommended a few upgrades that would take it to the next level. Enter the GS3-457!

Disclaimer

Ultimate Reloader LLC / Making with Metal Disclaimer: (by reading this article and/or watching video content you accept these terms). The content on this website (including videos, articles, ammunition reloading data, technical articles, gunsmithing and other information) is for demonstration purposes only. Do not attempt any of the processes or procedures shown or described on this website. All gunsmithing procedures should be carried out by a qualified and licensed gunsmith at their own risk. Do not attempt to repair or modify any firearms based on information on this website. Ultimate Reloader, LLC and Making With Metal can not be held liable for property or personal damage due to viewers/readers of this website performing activities, procedures, techniques, or practices described in whole or part on this website. By accepting these terms, you agree that you alone are solely responsible for your own safety and property as it pertains to activities, procedures, techniques, or practices described in whole or part on this website.

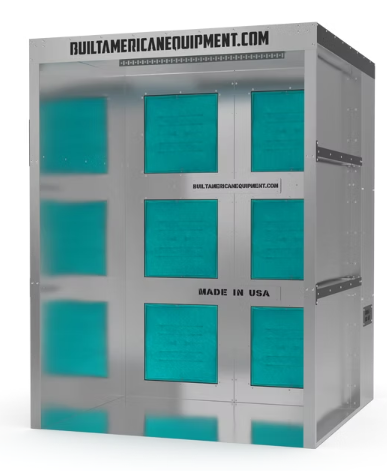

About the GS3-457 Spray Booth

Built American’s new GS3-457 Spray Booth takes the same technology as  their previous models, but adds a number of features aimed at improving the user experience.

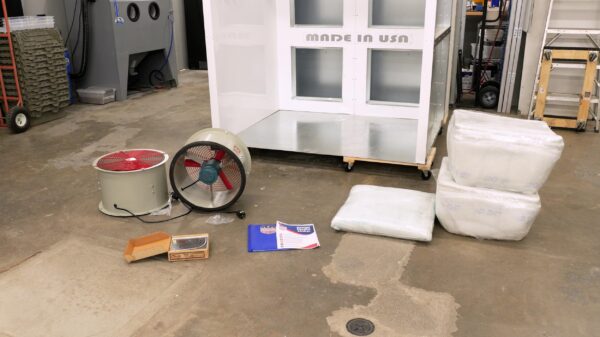

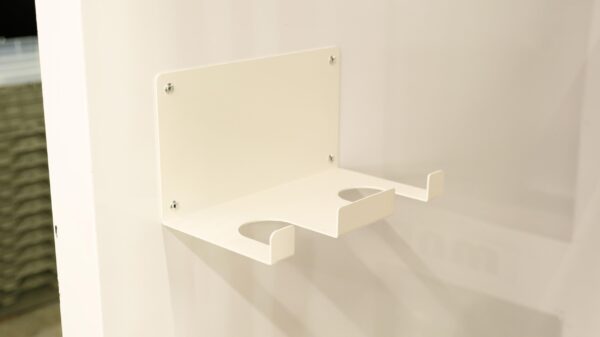

They actually integrated Ultimate Reloader feedback and feature requests into the new design, which features two fans, six filters, enhanced lighting, built-in racking options, a test sheet clip, and a two-gun storage rack.

Built American also includes some patriotic sample materials to spray!

Our model has a premium powder coat interior to increase reflectivity. This is available as an add-on.

Other options include interior side lighting, variable speed motor control, and a manometer filter indicator.

From Built American:

Our industrial batch spray booths are available in many standard sizes (custom sizes available on request) and are the ideal choice for wet & powder applications. Industrial batch spray booths feature.

Our spray booths are perfect for the professional powder coater or serious hobbyist looking for the best results. Featuring a two Stage Filtration System and high capacity – low circulation, tube axial explosion proof fan, LED lighting, & hanging rack.  Designed for years of effective small batch powder coating use. All units are adjusted and tested prior to shipment from our facility to help reduce installation and start-up times.

Features:

• • Corrosion-resistant steel coating
  • Tube axial explosion proof exhaust fan
  • LED lighting
  • Hanging rack
  • Open-Face booth manufactured to be powder coating specific
  • Simple, user-friendly controls
  • Two stage filtration system using media & pocket filters to eliminate airborne particles
  • Made in the USA!

Electrical Specifications:

• • Single Phase
  • 120VAC
  • 20A

Number of Filters: Twelve (12)

• • Six Media Filter
  • Six Pocket Filter

Exhaust: Explosion proof tube axial exhaust fan

Misc: LED lighting; Hanging rack

Weight: 800 lbs

Interior Dimensions: 50” Length x 48” Depth x 84” Height

Exterior Dimensions: 65” Length x 65” Depth x 87” Height

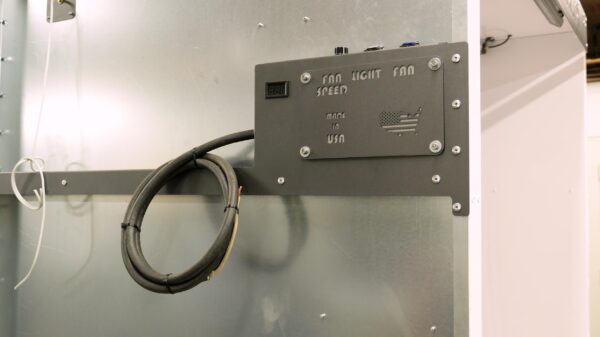

The 65” x 65” x 87” exterior dimensions provide enough room for us to work on larger Cerakote projects and booth operation is simple. Well-labeled controls on the side of the booth power the lights and fan.

One important feature I specifically requested was the ability to control fan speed. Venting a spray booth to the outdoors at full speed means that large amounts of cool air are being pushed outside in the summer and warm air pushed outside in the winter.

This is highly inefficient and can create HVAC load problems. Built American’s adjustable fan speed allows the user to slow the fan during times of preparation or off-gassing to dispel fumes and to turn it up during actual spraying.

I also opted for a Manometer, a device that indicates the restriction on the filters and provides a visual for when it’s time to replace them.

Installation and Demo

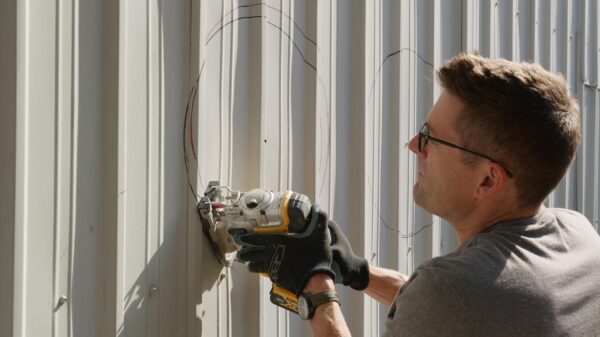

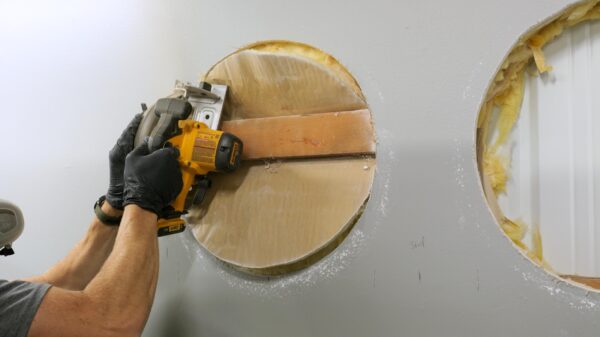

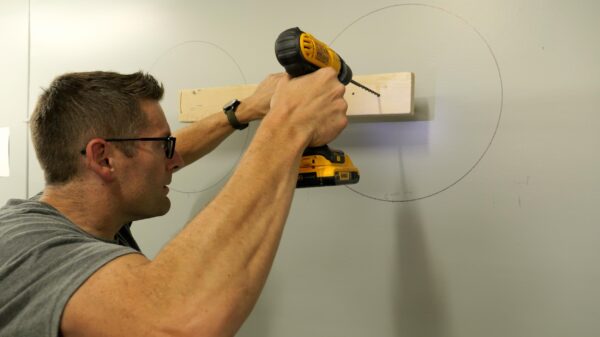

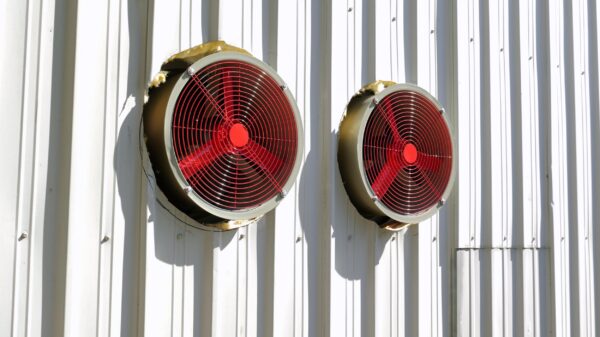

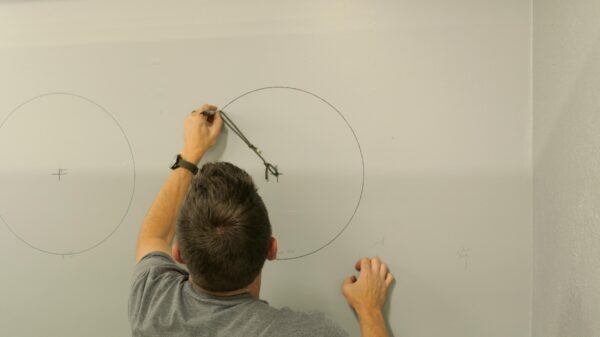

With the two fans 26” on center with outlets in the rear, I had to cut into our building to accommodate them.

Thankfully, this process wasn’t too arduous as our building is 24” on center.

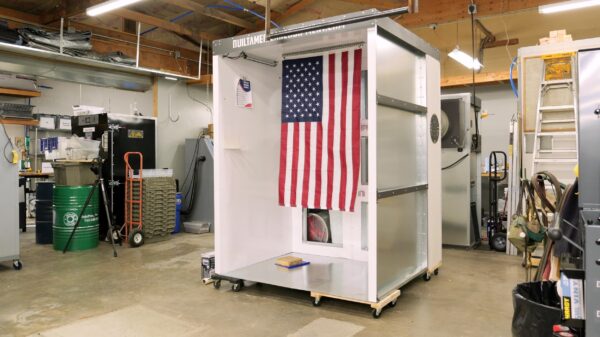

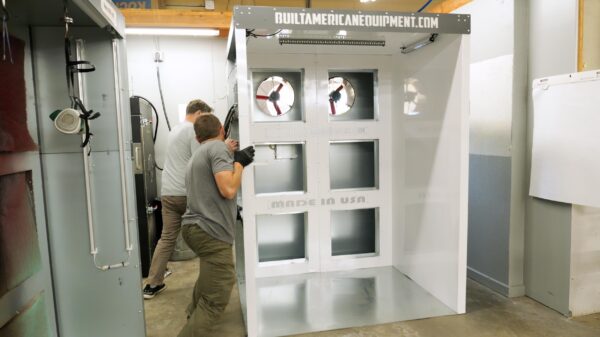

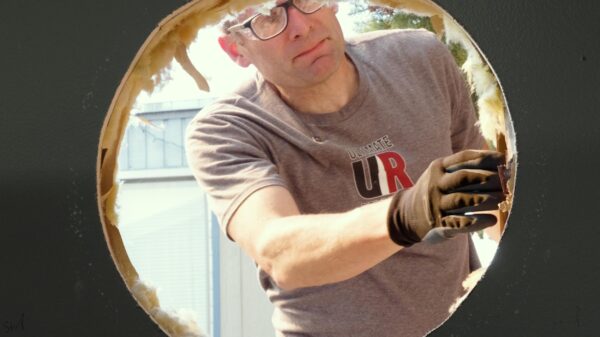

Once the cuts were made, we pushed the booth into place and connected the power.

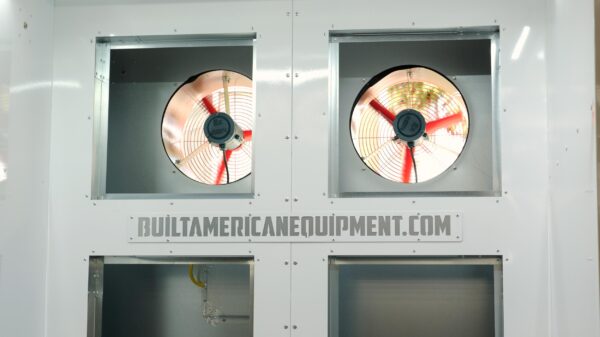

I was especially impressed with the adjustability of the fans.

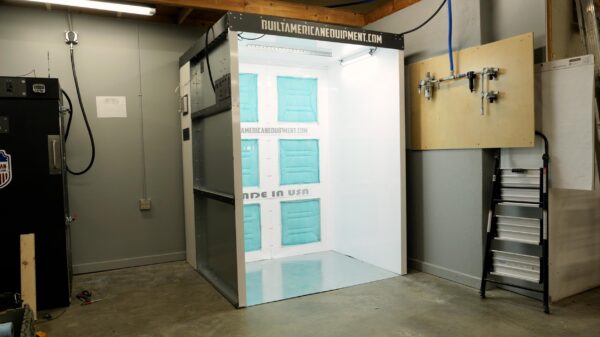

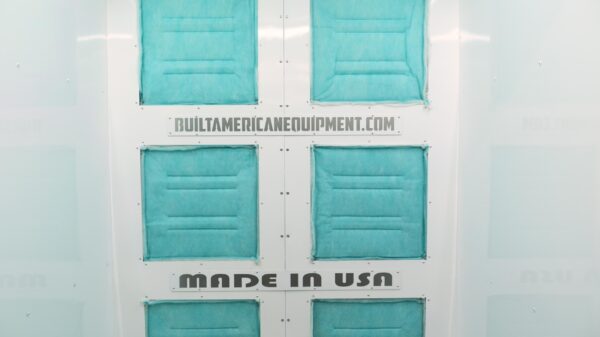

The final steps were to install the filters and manometer.

I also decided to hang protective film to preserve the interior of the booth.

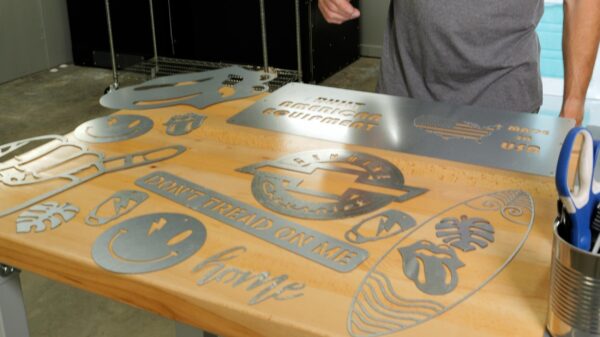

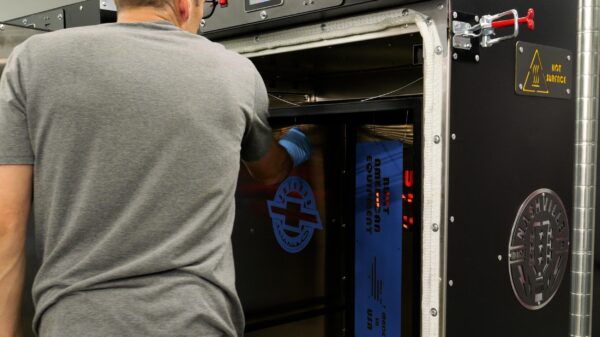

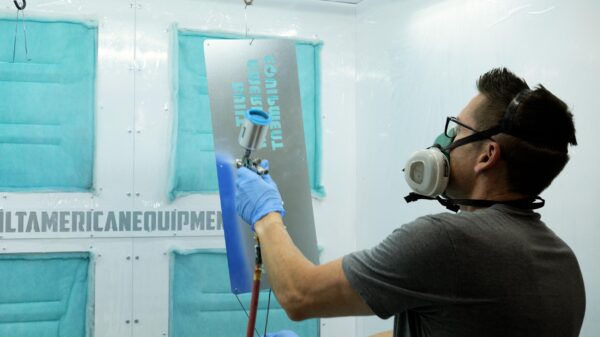

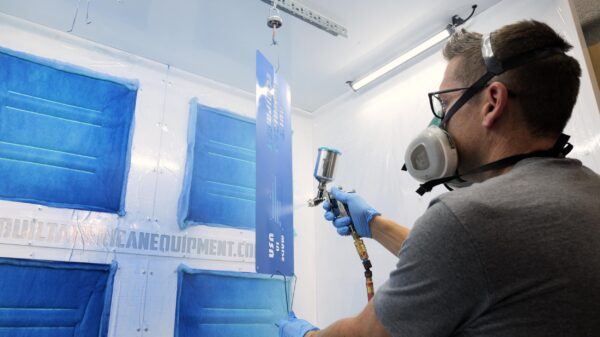

Choosing a few of the decorative signs Built American includes for practice, I sandblasted them and Cerakoted them in H-362 Patriot Blue before curing them in the Built American BAE-0300 oven.

Conclusion

This spacious  spray booth was purpose built to offer everything an applicator needs.

Built American took our feedback and feature requests to create the GS3-457, which has everything we desire in a booth. I am very excited to put it to work. Keep watching for more Cerakote content!

Get the Gear

Built American GS3-457 Spray Booth

Use code UR5 to save 5% on one Built American product, use UR10 to save 10% on 2+ products!

Don’t miss out on Ultimate Reloader updates, make sure you’re subscribed!

Thanks,
Gavin Gear
