If you’re running a shop with three-phase equipment but only have single-phase power available, you’ve probably run into some headaches. Installing utility-provided three-phase power can be ridiculously expensive, but luckily, phase conversion is a solid alternative.
In this article, we’ll break down the different types of phase converters and take a close look at Phase Technologies‘ Phase Perfect digital conversion technology—a game-changer in this space. Whether you’re setting up a new shop or upgrading your power setup, this guide will help you make an informed decision.
Disclaimer
Ultimate Reloader LLC / Making with Metal Disclaimer: (by reading this article and/or watching video content you accept these terms). The content on this website (including videos, articles, ammunition reloading data, technical articles, gunsmithing and other information) is for demonstration purposes only. Do not attempt any of the processes or procedures shown or described on this website. All gunsmithing procedures should be carried out by a qualified and licensed gunsmith at their own risk. Do not attempt to repair or modify any firearms based on information on this website. Ultimate Reloader, LLC and Making With Metal can not be held liable for property or personal damage due to viewers/readers of this website performing activities, procedures, techniques, or practices described in whole or part on this website. By accepting these terms, you agree that you alone are solely responsible for your own safety and property as it pertains to activities, procedures, techniques, or practices described in whole or part on this website.
Why Three-Phase Power Matters
Three-phase power is the gold standard for industrial and shop equipment. Here’s why:
- Motors run more efficiently and last longer
- Provides more power with smoother operation
- Requires smaller wires, reducing installation costs
- Compatible with a wider range of machines
The problem? Most small shops and home workshops don’t have access to utility-supplied three-phase power. Running new lines can cost anywhere from tens of thousands to over a million dollars, depending on location and infrastructure. That’s where phase conversion comes in.
Different Ways to Get Three-Phase Power
If you need three-phase power but don’t have access to it, you’ve got a few options:
1. Static Phase Converters
Static phase converters are the cheapest option, sometimes as low as $100. They use capacitors to generate a third phase for motor startup, but after that, the motor runs on only two legs. The downsides?
- You only get about two-thirds of the motor’s rated power.
- Increased wear and tear due to uneven torque.
- Not great for anything beyond light-duty use.
2. Rotary Phase Converters (RPCs)
Rotary phase converters use a spinning idler motor to generate a third phase, offering more stability than static converters. These have been a go-to solution for years, but they come with some drawbacks:
- The voltage on the manufactured leg can fluctuate.
- They’re loud and generate heat.
- They take up a lot of space and sometimes require concrete pads for installation.
- They constantly use power, even when idle.
3. Variable Frequency Drives (VFDs)
VFDs are great if you only need to run a single motor, and you want variable speed control. They work by converting single-phase power into three-phase while allowing you to adjust motor speed. Sounds great, but there’s a catch:
- Not practical for machines with multiple motors or complex electronics.
- Often requires modifications to your existing setup.
- More of a niche solution than an all-purpose fix.

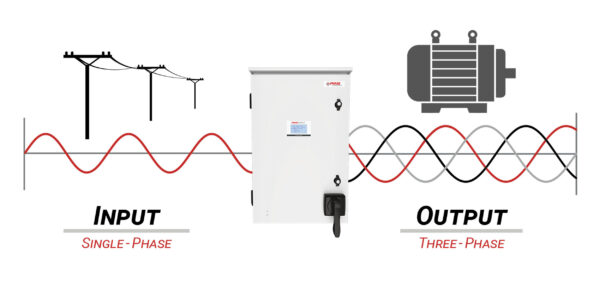

The Modern Solution: Phase Perfect Digital Phase Conversion
If you’re looking for the best way to get three-phase power without the drawbacks of traditional converters, Phase Perfect by Phase Technologies is your answer.
What Makes Phase Perfect Different?
Unlike rotary converters, Phase Perfect is solid-state—which means no moving parts, low noise (quieter operation), and no wasted energy. It’s designed to work like true three-phase power, making it perfect for any shop setup.
Here’s why it stands out:
- Voltage stays balanced within 2%—better than most power companies provide.
- Minimal energy loss, even when idle (just a few hundred watts vs. thousands in a rotary converter).
- Powers multiple machines at once, just like utility-supplied three-phase.
- Compact, lightweight, and easy to install.
Choosing the Right Phase Perfect Model
Phase Technologies offers two main product lines, depending on your shop’s needs:
Enterprise Series
- Ideal for setups requiring 7.5 to 20 HP.
- More compact and budget-friendly.
- Delivers the same high-quality power conversion as the Performance Series.
Performance Series
- Covers a broader range: 7.5 to 175 HP.
- Built for higher power demands and more customization.
- Includes extra options like service-rated disconnects and surge protection.
Our Experience with Phase Perfect
At Ultimate Reloader, we’ve put Phase Perfect to the test in two different shop setups:
- Mountain Shop: We swapped out a 20 HP rotary converter for a PTE 010 (10 HP Phase Perfect). Same power rating, but better efficiency and performance.
- Main Shop: With a dedicated 200-amp panel, we installed a PT 030 (30 HP Phase Perfect) to handle future CNC expansions. Now we have rock-solid, clean three-phase power without the hassle.
The Best Choice for Your Shop
If you need reliable three-phase power without the noise, inefficiency, and bulk of rotary converters, Phase Perfect is the way to go. It’s the closest thing to having utility-supplied three-phase power—without the massive installation cost.
Bonus: Get an Extra Year of Warranty!
If you decide to go with Phase Perfect, mention Ultimate Reloader when you buy, and you’ll get an extra year of warranty coverage—for free!
Check out Phase Technologies for product details and expert consultation. Got questions about phase conversion? Drop them in the comments—we’d love to hear about your setup!
Get the Gear
Don’t miss out on Ultimate Reloader updates, make sure you’re subscribed!
Thanks,
Gavin Gear
